Craftsman Bandsaw – Review & Assembly

I purchased the Craftsman Model # BAS350 Bandsaw recently and it has been an excellent addition to my shop! Craftsman hand tools are the best in the world, but their power tools can be hit and miss sometimes. This one however, has definitely been a hit for me. I think Craftsman has struck the right balance between cost and features. I purchased mine on sale for about $400 from my local sears. In the below post I’ll go over the features, assembly, and wrap up with a short summary.

Craftsman Bandsaw

Specifications

  • Blade Length 99-3/4″
  • Blade Width 1/4″ to 3/4″
  • Throat Width 13-1/2″
  • Cutting Depth
  • Blade Speeds 1620/3340 ft/min
  • Dust Ports 2-1/2″ and 4″ 8″
  • Table Size 15-3/4″ x 20-3/8″
  • Table Tilt 0-45
  • Degrees Motor 1 HP Motor
  • Voltage 120/240
  • Motor Amperage 9/4.5 A
  • Net Weight 160 LBS

Features

  • The device offers two blade speeds: 1620 and 3340
  • Two dust collection ports.  One at the back and one at the front.  They are 2-1/2 in. and 4 in. deep.
  • Include a standard 3/4” x 3/8” miter slot
  • Seven foot power cord
  • Upper and lower guards
  • The saw has an 8-inch resaw capacity and ball bearing guides to help reduce friction and lengthen blade life.
  • Craftsman One Year Limited Warranty
  • 45-degree tilting table

Craftsman Band Saw Blade Tension GuideA tension indicator is located on the side of the bandsaw.  Adjusting the tension knob on the top of the saw will move the indicator up or down.

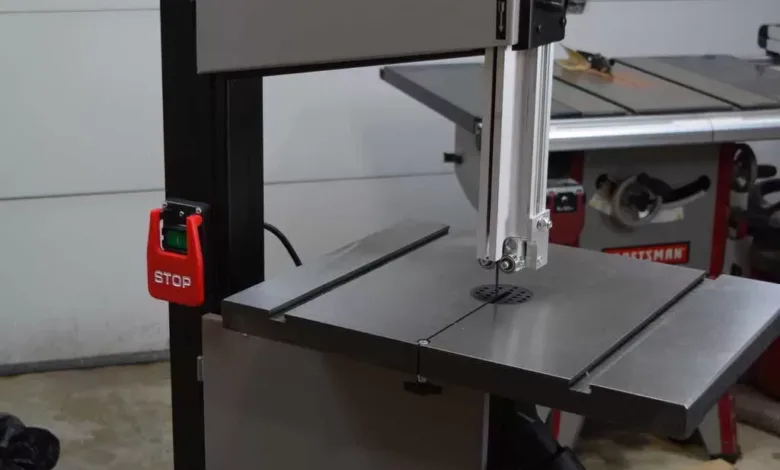

Craftsman Band Saw Power SwitchThe saw includes a large start and bright red safety stop lever.








Craftsman Band Saw Speed GuideThe saw can be adjusted to cut at two different speeds.  A handy guide is included on the side to make it easy to adjust speeds.


Assembly

The assembly of the Craftsman Bandsaw went smoothly and overall was simple.  I did a quick video of how I assembled it below.  You can easily assemble it in less than an hour.


The assembly of the Craftsman Bandsaw went smoothly enough.  The table assembly was simple and actually stronger when fully assembled than I imagined.

Craftsman Band Saw BoxedCraftsman Band Saw BoxedCraftsman Band Saw Stand Assembly











Craftsman Band Saw Stand AssemblyCraftsman Band Saw Stand AssemblyCraftsman Band Saw Stand Assembly











Craftsman Band Saw Stand AssemblyCraftsman Band Saw Stand AssemblyCraftsman Band Saw Assembly












A nice thing about assembling the Craftsman Bandsaw were the directions.  They were complete and just made sense.  In fact most of the band-saw is already assembled for you.  You will need a few tools to complete the assembly:  Phillips screw driver, adjustable wrench, and a square.  The saw is heavy and I would strongly recommend that two people lift it onto the table when you’re ready to seat it.

Craftsman Band Saw Assembly Craftsman Band Saw Tool Holder Assembly Craftsman Band Saw Dust Catcher Assembly











Craftsman Band Saw Trunion Assembly Craftsman Band Saw Table Assembly Craftsman Band Saw Table Assembly











Craftsman Band Saw Table Assembly Craftsman Band Saw Guard Craftsman Band Saw Tension Knob












Summary

I really like the Craftsman Bandsaw Model BAS350 (00932607000P).  This bandsaw is sturdy accurate and easy to assemble.  It’s well priced for what is included and should last for years.  The heavy cast iron table just looks and feels solid.  It is great for cutting wood, and with adjustable speeds it can be used for other purposes.  It’s extremely rare that I have no criticisms for a product, but honestly I have none at this time.  Perhaps with more use and time I will update this post, but for now it just seems solid.

Looking for more information?  Check out the Crafsman Bandsaw Model BAS350 Manual
